Small Excavator Custom Cylinders 16MPa Telescopic Type 335mm Maximum Stroke
-
Markeren
Small Excavator custom cylinders
,16MPa custom cylinders
,335mm custom built hydraulic cylinders
-
ProductnaamHydraulische cilinder
-
Stroom16MPa
-
Dimensie (L*W*H)630*150*150 mm
-
Stangdiameter56 mm
-
Maximale slag335 mm
-
Buitenbuisdiameter140 mm
-
Binnenbuisdiameter80 mm
-
Totale lengteaangepast
-
TypeTelescopische cilinder
-
MateriaalStaal, aangepast
-
Plaats van herkomstJiangsu, China
-
MerknaamGuoyue
-
Certificeringiso
-
Modelnummeraangepast
-
Min. bestelaantal1 stuk
-
PrijsUSD1,000-10000/pieces
-
Verpakking DetailsStandaard exportpakket
-
Levertijd12 ~ 60 dagen hangt af van het type producten
-
BetalingsconditiesT/t
-
Levering vermogen2500 Ton/Ton per jaar
Small Excavator Custom Cylinders 16MPa Telescopic Type 335mm Maximum Stroke

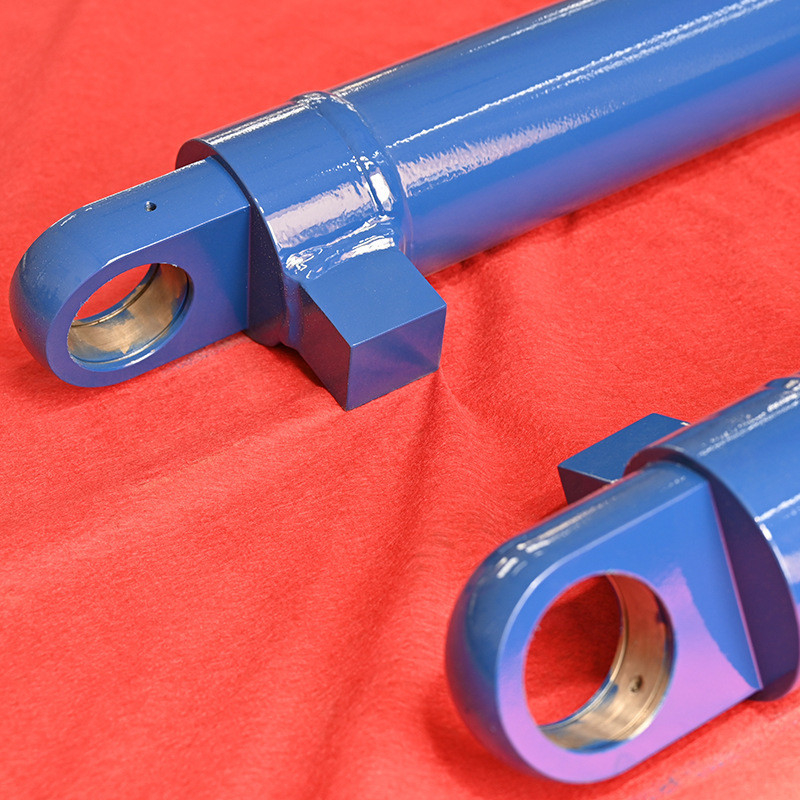

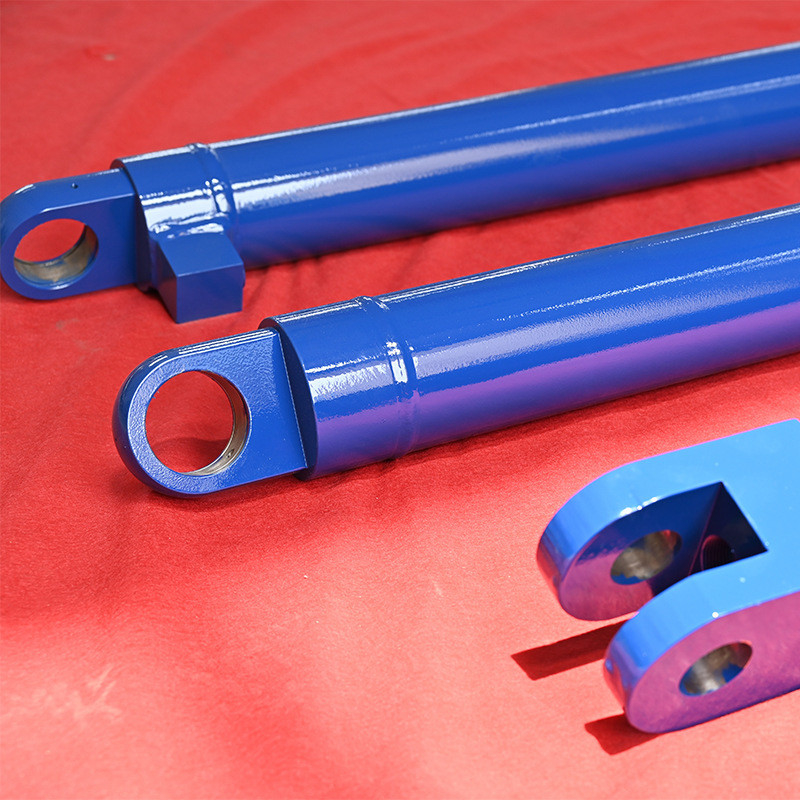

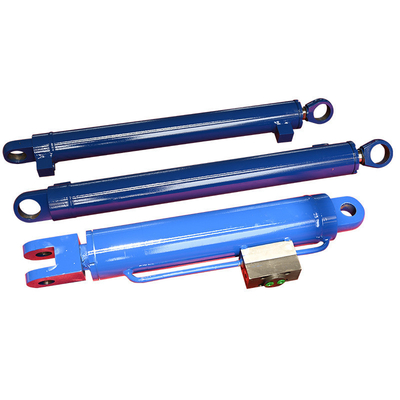

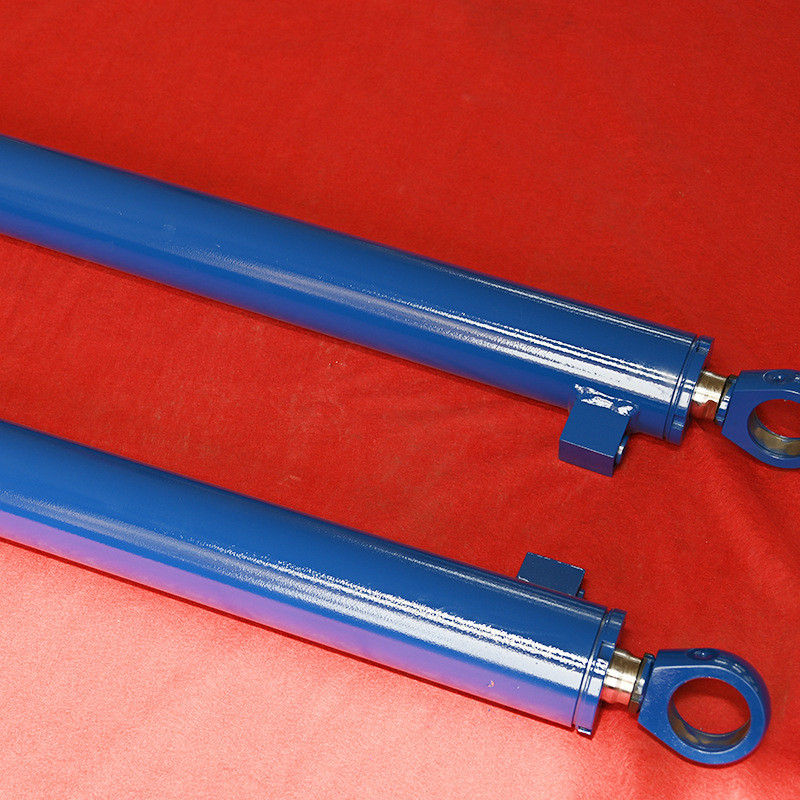

Customized Bucket Cylinder for Small Excavator
High-performance hydraulic cylinder designed for mobile machinery and isostatic pressing applications.
Product Specifications
| Attribute | Value |
|---|---|
| Product name | Hydraulic Cylinder |
| Power | 16MPa |
| Dimension (L×W×H) | 630×150×150mm |
| Rod Diameter | 56mm |
| Maximum Stroke | 335mm |
| Outer Tube Diameter | 140mm |
| Inner Tube Diameter | 80mm |
| Overall Length | Customized |
| Type | Telescopic Cylinder |
| Material | Steel, Customized |
Product Features
- Premium Construction: Tube follows GUOYUE CD250 style with steel options including 45#, 42CrMo, or 27SiMn
- Precision Machining: Hole ground to H8 with surface roughness Ra under 0.4 μm
- Durable Components: Head, base, ears, and piston made from 45# steel (no cast iron or cast steel)
- Safety Features: Optional fixed or floating bumpers for controlled deceleration
- Quality Welds: Ultrasound tested heavy-load welds for reduced stress and extended lifespan
- Premium Seals: Only uses top-tier seals from NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany)
- Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
- Warranty: 1-year coverage from shipment date with free repair/replacement for manufacturing defects
Additional Specifications
| Applications | Engineering machinery, mining, shipping, metallurgy, water conservancy, offshore, agriculture |
| Seal Options | Parker, Merkel, NOK, Hallite |
| Paint Colors | Red, Grey, Yellow, Black (customizable) |
| Material Options | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316 |
| Certifications | ABS, Lloyds, SGS |
| Packaging | Bubble-wrap with wooden case |
| Structure | Piston Type, Plunger Type, Telescopic Type |
| Power Type | Hydraulic & Pneumatic |
Company Information
- Location: Jiangsu, China (established 2022)
- Markets: Domestic (40%), Africa (10%), North America (10%), South America (8%), Southeast Asia (6%), Western Europe (5%)
- Employees: 51-100
- Quality Assurance: Pre-production samples and final inspection before shipment
- Product Range: Hydraulic cylinders including single-acting, double-acting, and construction machinery cylinders
- Company Profile: Technology enterprise with 50 million yuan registered capital, specializing in R&D and production
- Services: FOB delivery terms, USD/EUR payments, T/T payment type, English/Chinese support
